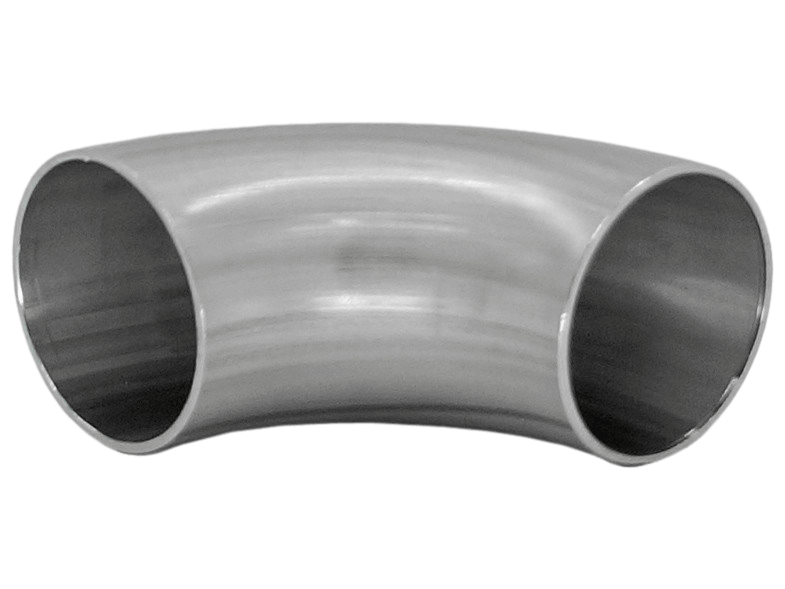

Rohrbogen, 90° – Typ 3D – EN 10253-4/A
| Ausführung | geschweißt, nahtlos |
|---|---|
| Werkstoff | 4307, 4404, 4541, 4571 |
| Außendurchmesser | 12,0, 13,5, 15,0, 16,0, 17,2, 18,0, 20,0, 21,3, 23,0, 25,0, 26,9, 28,0, 30,0, 33,7, 35,0, 36,0, 38,0, 40,0, 42,4, 43,0, 44,5, 48,3, 51,0, 53,0, 54,0, 57,0, 60,3, 63,5, 70,0, 76,1, 83,0, 84,0, 85,0, 88,9, 101,6, 104,0, 105,0, 108,0, 114,3, 129,0, 133,0, 139,7, 154,0, 159,0, 168,3, 204,0, 205,0, 206,0, 219,1, 254,0, 256,0, 273,0, 306,0, 323,9, 355,6, 406,4, 506,0, 508,0, 609,6 |
| Wandstärke | 1,5, 1,6, 2,0, 2,3, 2,5, 2,6, 2,9, 2,9/3,0, 3,0, 3,0/2,9, 3,05, 3,2, 3,6, 4,0, 4,05, 4,5, 5,0, 5,4, 5,6, 6,0, 6,3, 7,11, 8,18, 9,27, 9,52, 10,97 |
